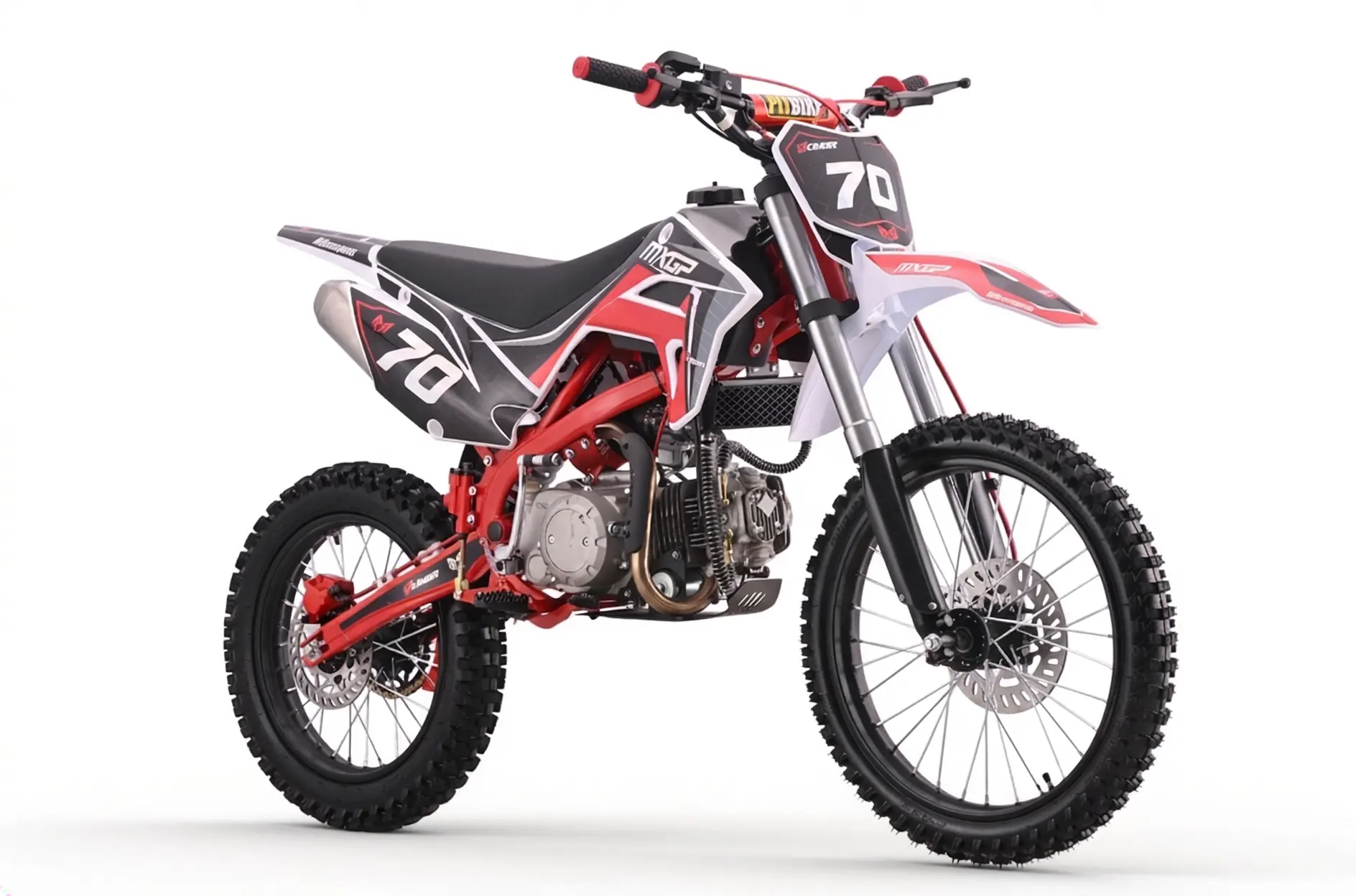

HUNTER 140HF
The HUNTER 140HF is a high-performance dirt bike featuring a powerful 140cc oil-cooled engine and a manual clutch for accurate shifting and full riding control. Its strong frame and durable build are specifically engineered for demanding off-road environments.
- Versatile Engine Platform: Features a 140cc oil-cooled engine with optional upgrades to 150cc, 160cc, or 190cc.
- Precision Manual Control: Equipped with a 1-N-2-3-4 manual clutch system for accurate gear shifting.
- Advanced Chassis Design: Utilizes front and rear oil damper suspension paired with responsive hydraulic disc brakes.
- Rugged Wheel Configuration: Fitted with a large 19-inch front and 16-inch rear steel rim setup for superior trail traction.
Technical Specification
Comprehensive technical details and parameters for the SHORMAR™ HUNTER 140HF.
ENGINE
- Engine Type 140cc, 4 stroke, oil cooled
- Max Power 6.8 kw / 7500 rpm
- Gear System Manual Clutch, N-1-2-3-4
- Final Drive Chain
- Fuel Delivery Carburetor, PZ27
- Starting Electric + Kick
CHASSIS
- Front Suspension Oil Damper
- Rear Suspension Oil Damper
- Front Brake Hydraulic Disc
- Rear Brake Hydraulic Disc
- Front Tire & Rim 70/100-17', Steel
- Rear Tire & Rim 90/100-14', Steel
DIMENSION
- L x W x H (Vehicle) 1885×775×1210 mm
- Seat Height 910 mm
- Wheelbase 1260 mm
- Ground Clearance 280 mm
- Fuel Capacity 4 L
- Max Loading 120 kgs
PACKING INFO
- L x W x H (Carton) 1540×380×690 mm
- N.W. / G.W. 83 / 93 kgs
- QTY / 20'GP 63 pcs
- QTY / 40'HQ 154 pcs
- Packing Type Steel Frame + Carton Box
